- CPU: AMD Ryzen™7 8745HS
- Memory: 16GB DDR5 5600MHz
- Storage: 512GB NVMe PCIe4.0×4 SSD
- Display: Quad 4K Display Output
- Connectivity: Wi-Fi 6, Bluetooth 5.2
- Design: Compact Build without Performance Loss
AMD Ryzen™7 8745HS
x| Processor | AMD Ryzen™ 7 8745HS Processor, 8 Cores/16 Threads (Zen 4 Architecture, TSMC 4nm Process, 16MB L3 Cache, base frequency 3.8GHz, turbo frequency up to 4.9GHz) |
| Graphics | AMD Radeon™ 780M Graphics (RDNA™ 3 Architecture, Graphics Frequency 2600MHz, 12 Graphics Cores) |
| Memory | 16GB DDR5 5600MHz (DDR5 SO-DIMM Slots ×2, up to 96GB) |
| Storage | 512GB M.2 2280 NVMe PCIe 4.0 ×4 SSD (2 × M.2 2280 Slots, support NVMe PCIe 3.0/4.0 SSDs, SATA SSDs not supported, up to 4TB) |
| Wireless Connectivity | WiFi 6 + BT5.2 |
| Video Output | HDMI 2.1*2 (4K@60Hz） USB3.2 Gen 2 Type-C*1 USB4 Type-C×1(8K@60Hz or 4K@120Hz) |
| Audio Output | HDMI 2.1 *2 USB3.2 Gen 2 Type-C*1 3.5mm Phone Jack * 1 |

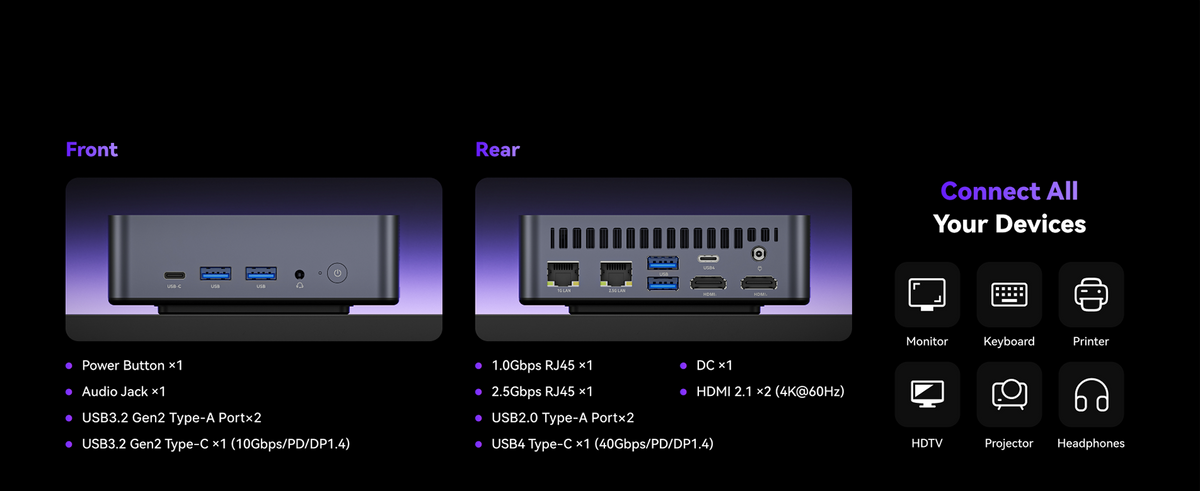

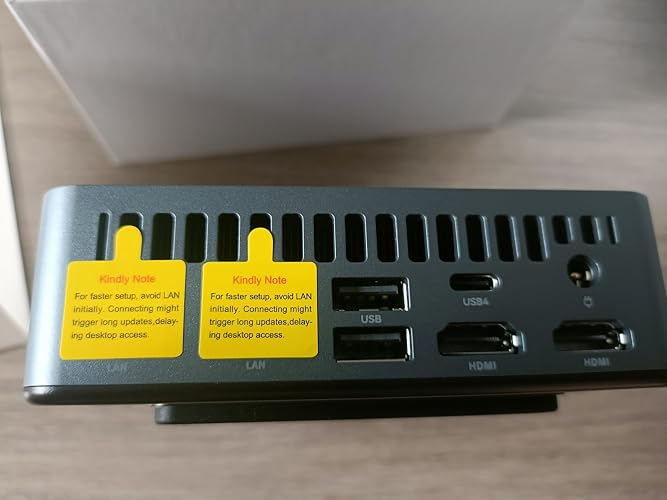

| Ports & Buttons | Power Button ×1 3.5mm Audio Jack ×1 USB 3.2 Gen 2 Type-A Port ×2 (10Gbps, front) USB 2.0 Type-A Port ×2 USB4 Type-C Port ×1 (DATA up to 40Gbps / DP 1.4 up to 8K@60Hz or 4K@120Hz / PD 100W Input) Full-Featured USB 3.2 Gen 2 Type-C Port ×1 (DATA up to 10Gbps / DP 1.4 up to 4K@60Hz / PD 100W Input) 1.0Gbps RJ45 Gigabit Ethernet Port ×2 HDMI® 2.1 Port ×2 (4K@60Hz) DC IN ×1 (19V/4.74A, 90W, 5525 DC Connector) |
| Power | DC 19V/4.74A，DC Header 5.5*2.5mm |
| System | Windows 11 Pro |
| Dimensions | 119.2*119.2*36.9mm |
FAQ
xAll Drivers Download Link:
WiFi and Bluetooth Drivers Download Link:

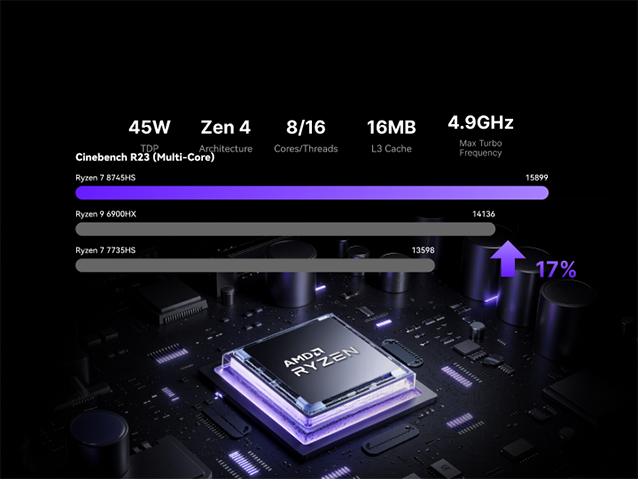

AMD Ryzen 7 8745HS
AMD Radeon 780M Graphics

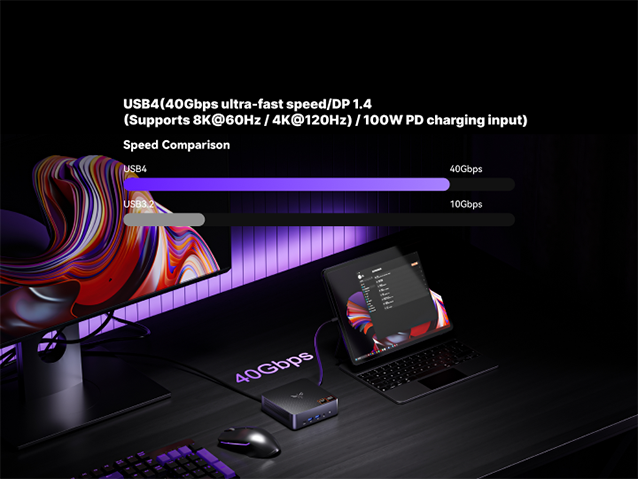

USB4 Does It All
4K Ultra HD Quad Display Support

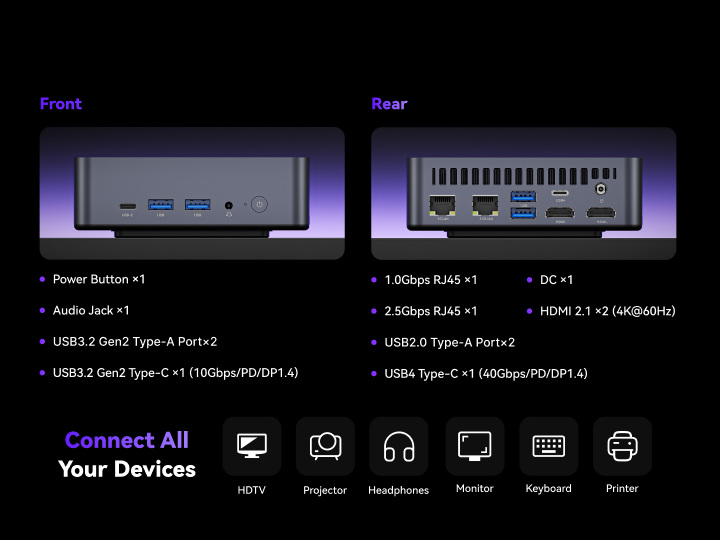

Premium Multi-Interface Design

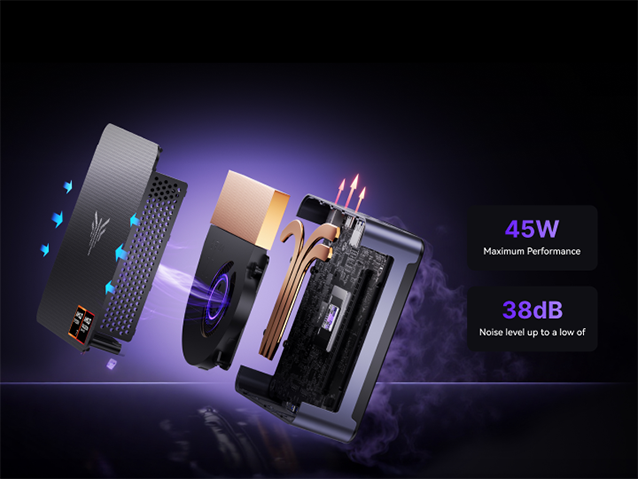

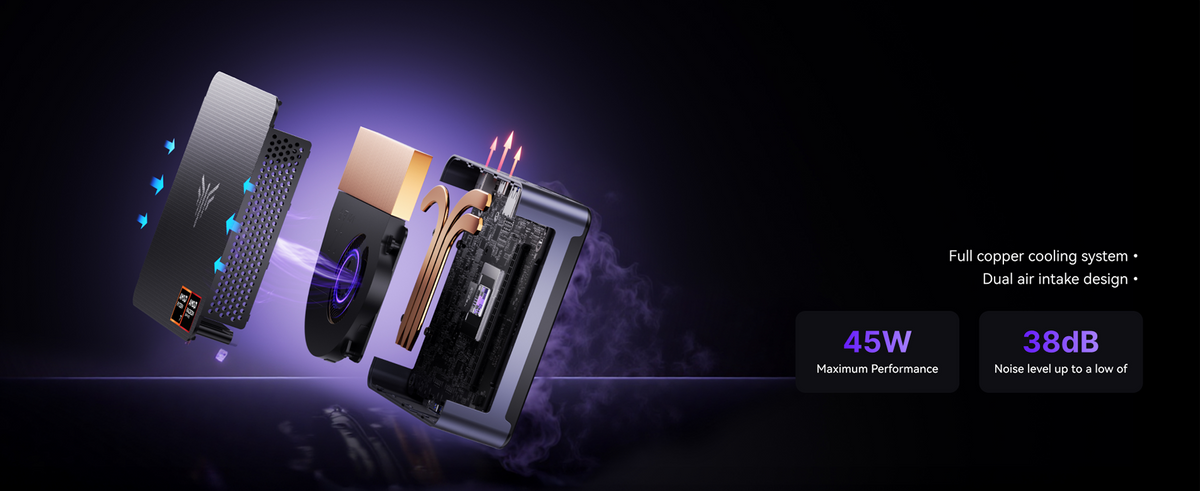

Efficient Heat Dissipation
Enjoy smooth multitasking experience

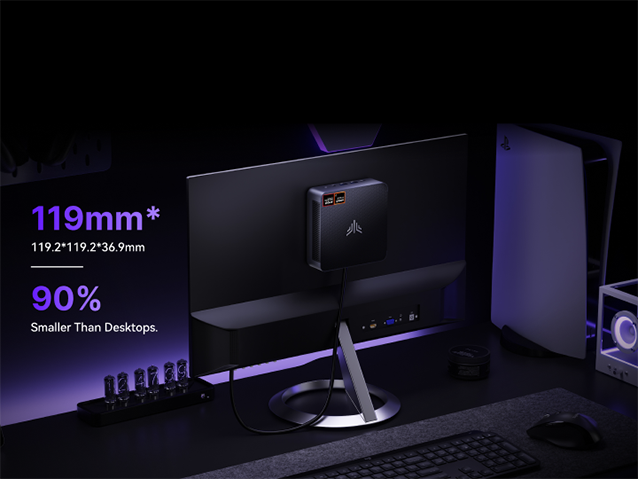

Mini PC VESA Mounted & Out of Sight
Gaming & Home Application & Office Application
